The biological safety cabinet with advanced ergonomic design excel in user comfort and functionality. Now the affordable biosafety cabinet class II for sale at cost price.
The class II A2 biological safety cabinet is a containment device utilized in biological safety laboratories to prevent the escape of harmful or unknown biological aerosols during operation. It is specifically designed for microbiological research involving non-volatile or non-toxic chemicals and radionuclides.
| Model | BSC-IIA2-1100 | BSC-IIA2-1400 |
|---|---|---|
| Internal Size (W×D×H)(mm) | 950x666x600 | 1300x666x600 |
| External Size (W×D×H)(mm) | 1050x836x2120 | 1400x836x2100 |
| Max Opening Height | 400 mm | |
| Safety Opening Height | 200 mm | |
| Work Surface Height | 800 mm | |

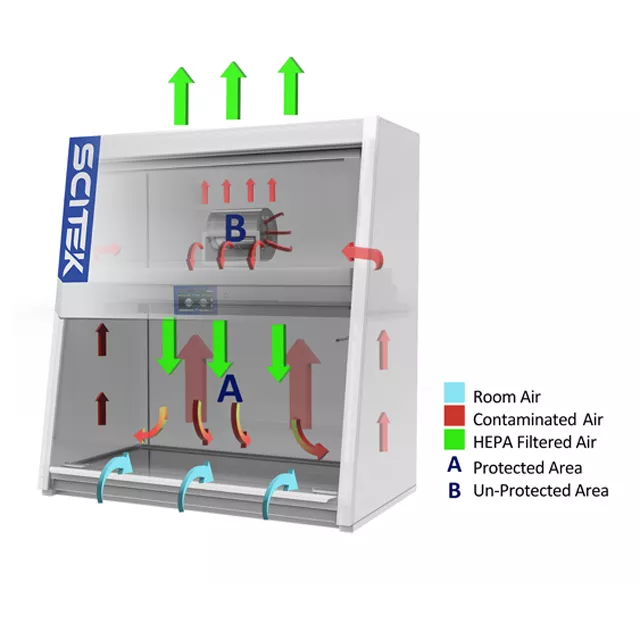

| Airflow System | 70% air recirculation, 30% air exhaust | |
| Downflow Velocity | 0.37 m/s | |
| Inflow Velocity | 0.55 m/s | |
| Filter Specification | AAF ULPA filter | |
| Supply HEPA Filter Size | 896×546×69mm | 1246×546×69mm |
| Exhaust HEPA Filter Size | 455×415×69mm | 805×415×69mm |
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) | |
| Display | LCD touch screen | |
| Alarm | Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height | |
| Front Window | Motorized, Two-layer laminated toughened glass ≥ 5mm. Anti UV. | |
| LED Lamp | 30Wx2 | 36Wx2 |
| UV Lamp | 20Wx1 | 30Wx1 |
| Rated Consumption | 1800W | |
| Illumination | ≥800Lx | |
| Sound Emission | ≤67dB(A) | |
| Power Supply | AC220V±20, 50Hz; 110V, 60Hz (Optional) | |
| Material | External Main Body: Electro-galvanized steel with antimicrobial Powder Coating Work Surface: 304 stainless steel |
|
| Standard Accessories | 1. Base stand 2. Air velocity sensor 3. LCD touch screen 4. LED lamp 5. UV lamp 6. Waterproof socket 7. Front window 8. Caster 9. Foot switch |
|
| Optional Accessories | 1. Gas tap 2. Water tap 3. IV bar with hooks 4. Pressure meter 5. ULPA filter |
|
| Net Weight | 224kg | 263kg |
| Gross Weight | 291kg | 349kg |
| Shipping Size(W×D×H)(mm) | 1210x1140x1710 | 1560x1140x1710 |
| Shipping Volume | 2.4m3 | 3.1m3 |
A biological safety cabinet (BSC) serves as a primary engineering safeguard, shielding personnel from biohazardous or infectious agents while also ensuring quality control of the material being handled by filtering both incoming and outgoing air.
What is Class II A2 biosafety cabinet?
Biosafety cabinets Class II A2 are currently the predominant choice in biosafety cabinets and have supplanted Type A1 cabinets. Type A2 cabinets are required to maintain a minimum average inflow velocity of 100 feet per minute (fpm) through the sash opening.
Difference between class II type A1, A2, and B1, B2 cabinets?
Class II Type A1 and A2 cabinets offer personnel and environmental protection, with Type A2 providing higher levels of protection. Type B1 and B2 cabinets provide additional protection for working with hazardous materials, with Type B2 offering the highest level of protection. The main differences lie in their airflow patterns, exhaust mechanisms, and suitability for different types of hazardous materials.
