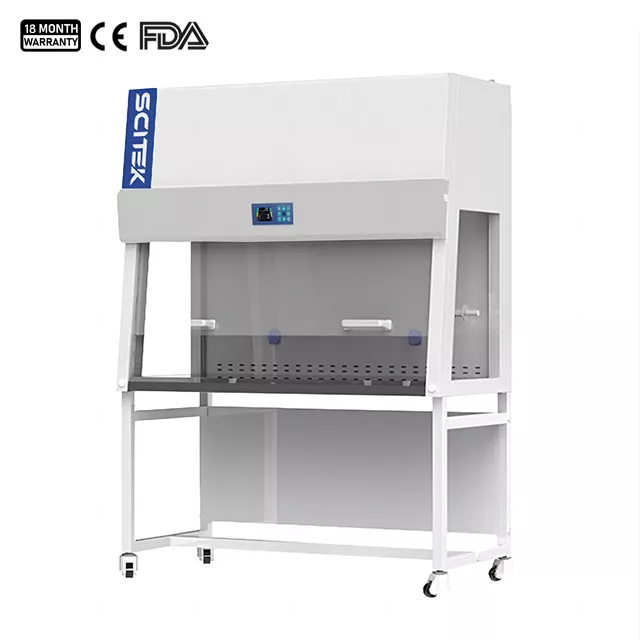

For applications that are not hazardous to operator but require clean work area, choose LCB-V series vertical laminar flow cabinet.

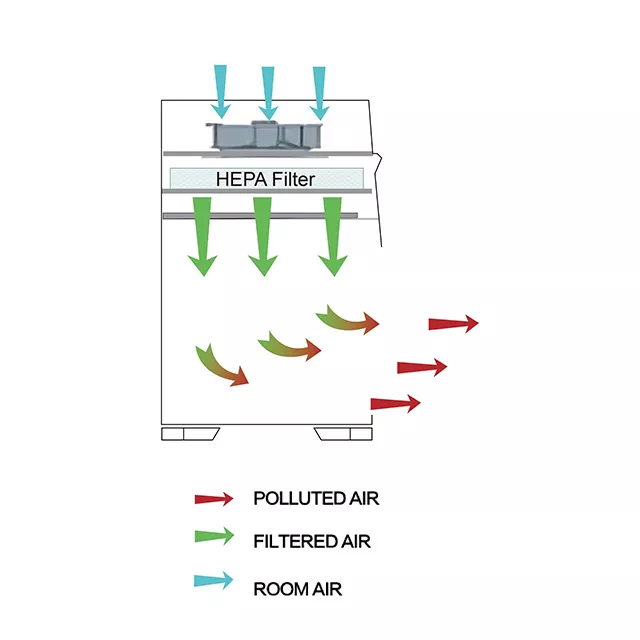

The vertical laminar flow cabinet safeguards samples by directing purified air in a vertical, unidirectional stream across the working zone. This airflow exits the main work chamber uniformly across the entire open front of the cabinet. Additionally, perforations at the back wall of the work zone are incorporated to eliminate air turbulence and prevent the formation of dead air corners, ensuring optimal working conditions within the cabinet.
| Model | LCB-V1100 | LCB-V1300 | LCB-V1600 | LCB-V1900 |
| External Size (WxDxH)(mm) | 1050×710×1850 | 1320×710×1850 | 1625x710x1850 | 1930×710×1850 |
| Internal Size (WxDxH)(mm) | 950×615×625 | 1220×615×625 | 1525x615x625 | 1830×615×625 |
| Control System | Microprocessor controller with LCD display, graphical and digital display of the operating status of each function. | |||
| Work Surface Height | 750mm | |||
| Airflow Velocity | Adjustable, 0.2~0.5 m/s | |||
| HEPA Filter Efficiency | > 99.995% at particle size of 0.3 μm | |||
| Pre-Filter | 1 pcs, made of washable polyester fiber | |||
| Sound Emission | ≤65dB(A) | |||
| Illuminating Lamp | LED lamp, Illumination ≥900Lx | |||
| LED Lamp | 6.5W×1 | 9.6W×1 | 9.6W×1 | 6.5W×2 |
| UV Lamp | 20W×1 | 30W×1 | 30W×1 | 20W×2 |
| With timing function, Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect. | ||||
| Power Consumption | 155W | 285W | 285W | 300W |
| Doesn’t include external device connected via power socket | ||||
| Cabinet Construction | Main Body: Electro-galvanized steel with antimicrobial Powder Coating | |||
| Work Zone: 304 Stainless steel | ||||
| Manual Sliding Sash: 5 mm UV Resistant Tempered Glass with counter-balance system and ergonomic handle | ||||
| Side Windows: 5 mm UV Resistant tempered glass | ||||
| Power Supply | AC220V ±10%, 50/60Hz, 1P | |||
| Standard Accessory | Base stand; LED lamp; UV lamp; Waterproof socket×2 (only 1 for LCB-V1100) | |||
| Optional Accessory | Water Tap, Gas Tap, IV bar, Height adjustable base stand | |||
| Net Weight | 170kg | 190kg | 220kg | 230kg |
| Gross Weight | 225kg | 255kg | 285kg | 330kg |
| Shipping Size (W×D×H)(mm) | 1190x990x1325 | 1460x990x1325 | 1765x990x1325 | 2070x990x1325 |
| Shipping Volume | 1.56m3 | 1.92m3 | 2.3m3 | 2.7m3 |
The working area of the vertical laminar flow cabinet is made of 304 stainless steel, which guarantees the material’s resistance to corrosion and cleaning. The manual sliding door is made of 5 mm UV-resistant toughened glass with a counterbalance system and ergonomically designed handles for the operator’s convenience.

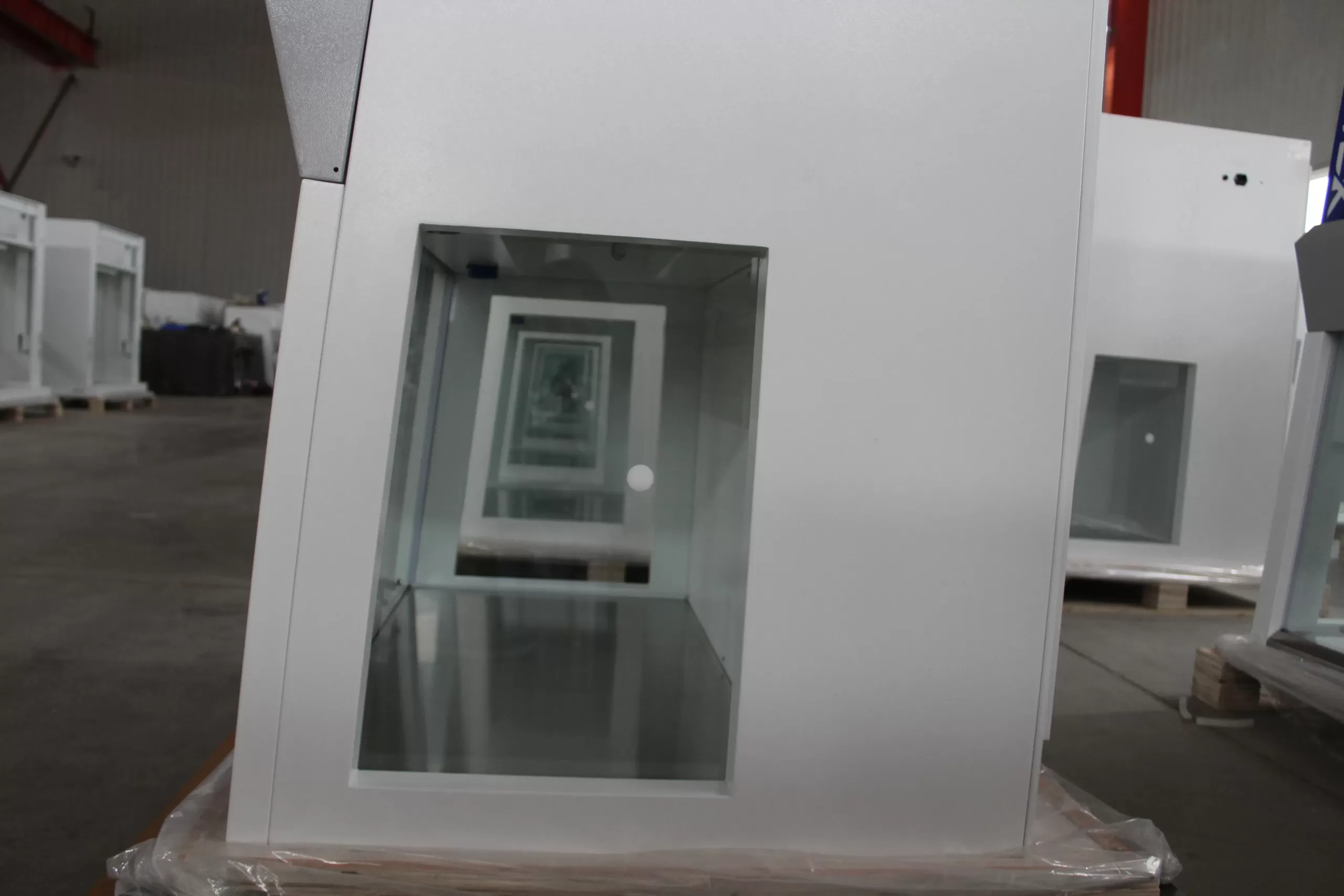

The side windows are made of 5 mm UV-resistant toughened glass, ensuring reliable visibility and UV resistance.
Clear display makes it easy to monitor the device’s operating status and parameter settings

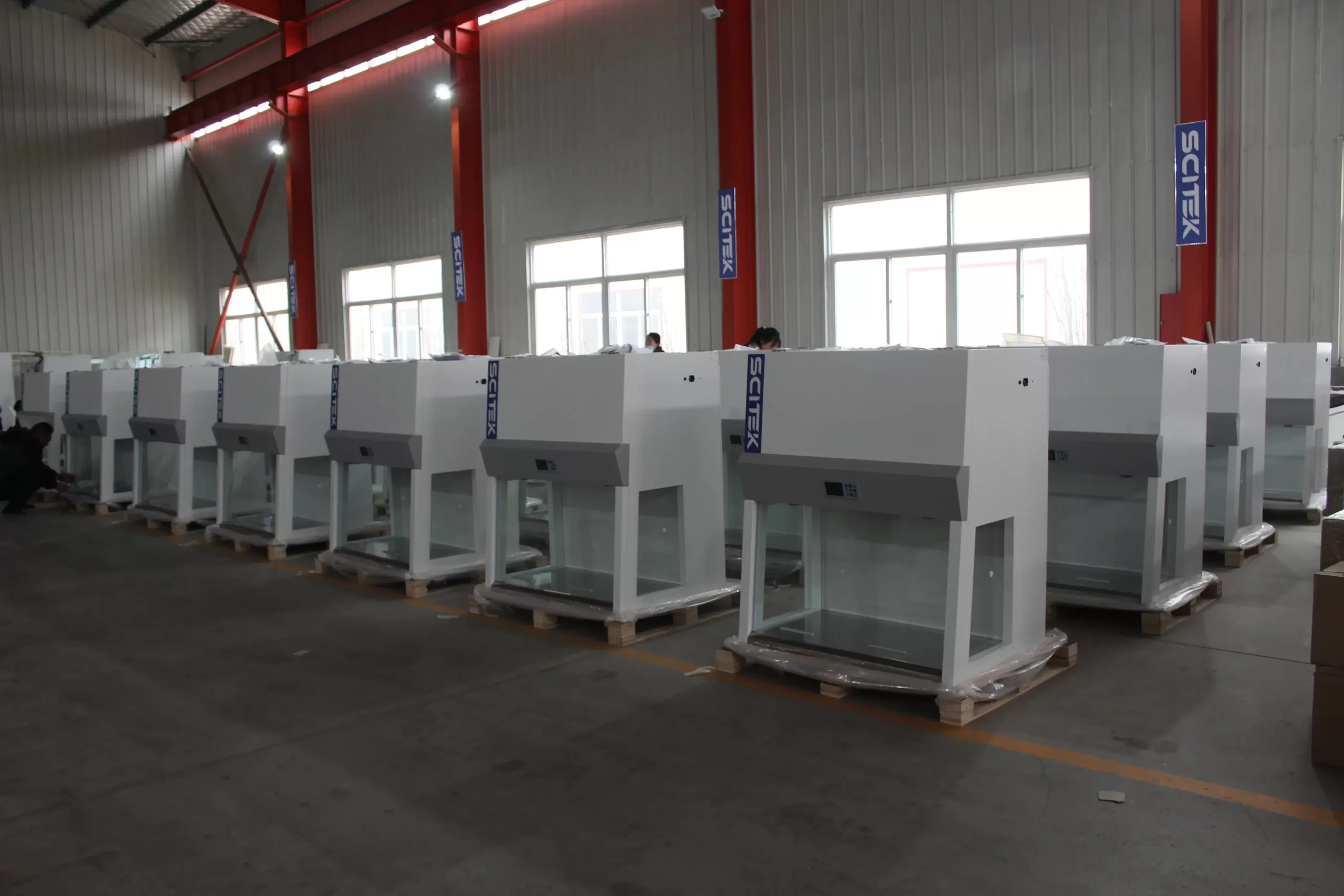

The vertical laminar flow cabinet is fully protected and securely installed during transport. The laminar flow cabinet is surrounded by dense packing material to prevent collision and vibration during transport.
We provide sea freight, air freight, land freight, express service, accept EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAF, DES, DEQ, DDU, DDP and other trade terms.
A vertical laminar flow cabinet works by drawing air through a HEPA filter, which removes contaminants, and then directing this clean air downward in a vertical laminar flow pattern onto the work surface, creating a sterile environment for tasks such as tissue culture, sample preparation, or pharmaceutical compounding.
