The biological safety cabinet class II A2 operates efficiently and safely in everyday applications, saving time, energy and money. Now the affordable biosafety cabinet class II A2 for sale at cost price.
The biological safety cabinet class II A2 operates efficiently and safely in everyday applications. It features outstanding design and advanced technology, including patented airflow design for superior protection, ergonomic design for a safe and comfortable environment, and excellent energy efficiency to save on operating costs.

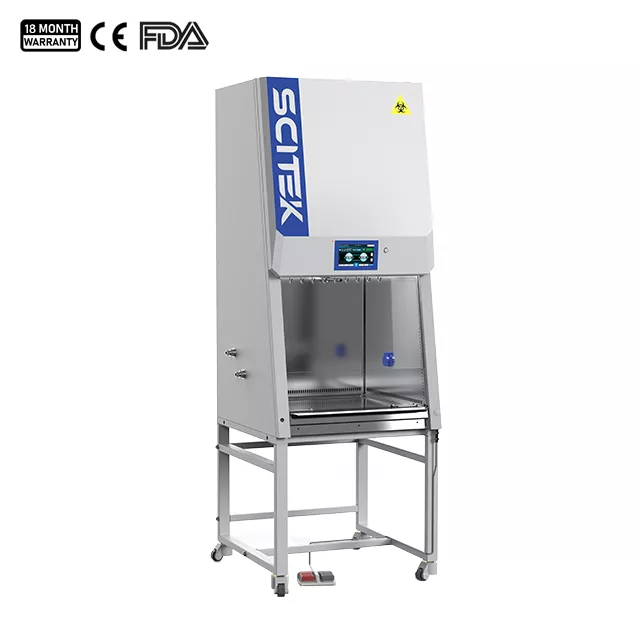

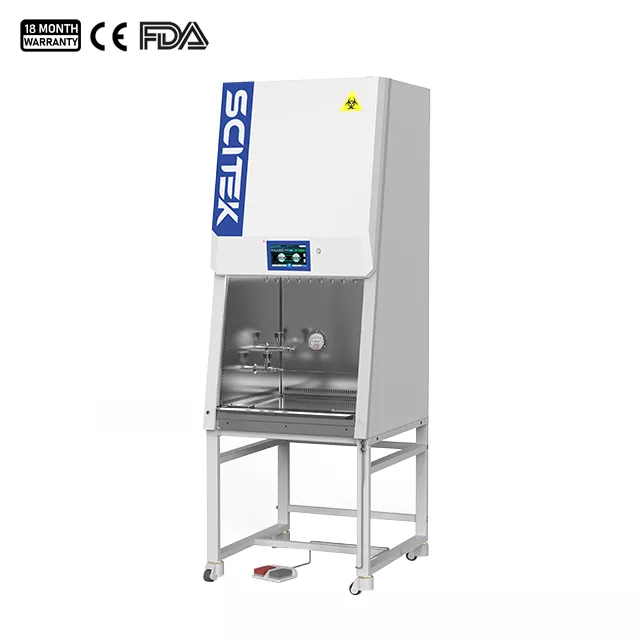

| Model | BSC-IIA2-2F |
|---|---|
| Internal Size(W×D×H) | 610×550×600mm |
| External Size(W×D×H) | 710x780x1430mm (Without base stand) 710x780x2050mm (With base stand) |
| Work Surface Height | 750mm |
| Airflow System | 70% air recirculation, 30% air exhaust |
| Downflow Velocity | 0.35m/s (Airflow fluctuation over 20%, there is visual and audio alarm) |
| Inflow Velocity | 0.52 m/s (Airflow velocity less than 0.40 m/s, there is Visual and Audio alarm) |
| Filter Specification | H14 HEPA filter, ≥99.995% efficiency at 0.3μm |
| Supply HEPA Filter Size | 570×490×70mm |
| Exhaust HEPA Filter Size | 540×370×70mm |
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) |
| Display | 1. LCD touch screen. 2. Real-time monitoring and display front window status. 3. Inflow and downflow velocity. 4. Pressure. 5. Date/time/temperature. 6. Filter and UV lamp life. 7. System working status etc. |
| Alarm | 1. Abnormal airflow velocit 2. HEPA filter failure 3. UV lamp failure 4. Front window at unsafe height |
| Front Window | Motorized, toughened glass |
| LED Lamp | 10w×2 |
| UV Lamp | 15w×1 |
| Rated Consumption /Max.Consumption | 260w/320w |
| Not include socket consumption | |
| Explosion-proof Socket | 3A 1pcs (IP54) |
| Socket Power Consumption Support | <1100w (220V), <550W(110V) |
| Illumination | ≥900Lx |
| Sound Emission | ≤60dB(A) |
| Work Surface Net Vibration Amplitude | ≤2μm |
| Power Supply | AC220V/50Hz; 110V/60Hz |
| Material | External Main Body: Electro-galvanized steel with antimicrobial powder coating Work Surface: 304 stainless steel |
| Standard Accessories | 1. Air velocity sensor 2. LCD touch screen 3. LED lamp 4. UV lamp 5. Explosion-proof/Waterprof socket 6. Motorized front window 7. Footmaster caster 8. Foot switch 9. Removable shallow-plate stainless steel work surface |
| Optional Accessories | 1. Gas tap 2. Water tap 3. IV bar with hooks 4. Pressure meter 5. Exhaust thimble canopy and 6m air duct assembly 6. ULPA filter 7. Base stand |
| Net Weight | 220kg |
| Gross Weight | 270kg |
| Shipping Size (W×D×H) | 850×990×1650mm |
| Shipping Volume | 1.4 m3 |
Each biosafety cabinet undergoes meticulous assembly steps without any delays:

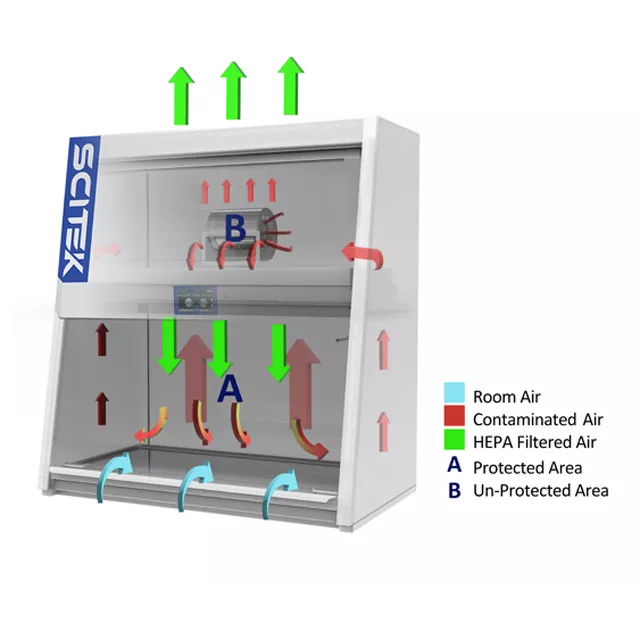

Operating principle of Biological Safety Cabinet Class II A2
Q: What is the difference between A1 and A2 biosafety cabinets?

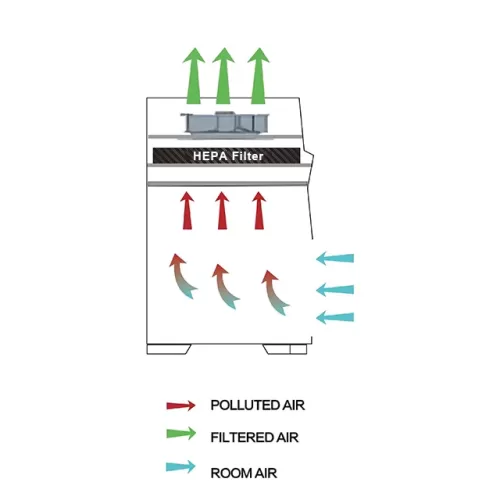

A: Class I biosafety cabinets (A1) provide personnel protection only, directing airflow away from the operator and into the laboratory, while Class II biosafety cabinets (A2) offer personnel, environmental, and product protection with HEPA-filtered laminar airflow to maintain a sterile work environment.
