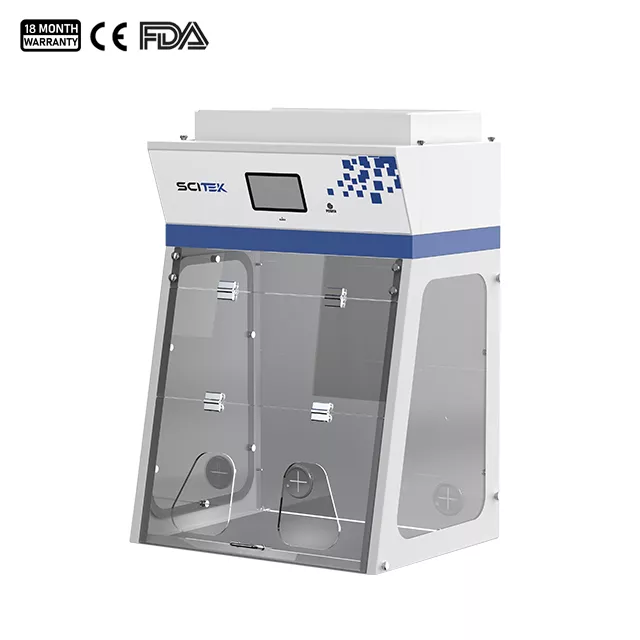

Standard ductless fume hood is an innovative and purpose driven product for the research and healthcare industries.
This kind of fume hood employs HEPA filtration to safeguard laboratory staff from particles. Additionally, with optional carbon or chemical filters, it can also shield them from toxic chemical fumes and odors. Renowned for its plug-and-play functionality and portability, the ductless fume hood ensures easy installation and uninterrupted lab work.
Powerful filtration system can be configured with HEPA filters and chemical filters according to customer requirements, effectively filtering and removing harmful substances to ensure a safe operating environment and protect personnel from harm.
Easy to operate, and fume hood equipped with a 7-inch LCD color touchscreen, it displays real-time parameters such as air velocity, VOC concentration, temperature and humidity, and filter lifetime. This achieves excellent human-machine interaction.
| Model | FMH-800DL |
| External Size (WxDxH)(mm) | 800x620x1130 (Without Base Stand) |
| 800x620x1800 (With Base Stand) | |
| Operation Area Size (WxDxH)(mm) | 780x540x775 |
| Operation Surface Height | 690mm |
| Max. Opening | 650mm |
| Air Velocity | Adjustable, 0.4-0.6m/s |
| Audio and Visual Alarm | Filter life; VOC contentration; Abnormal air speed |
| Touch Screen | 7-inch color screen with graphical and digital display of all the operating status of each function, such as filter life, voc, temperature and humidity etc |
| Blower | DC centrifugal blower, adjustable speed |
| Front Window | Manual acrylic window |
| Filter | Active Carbon filter (1pcs), Pre-filter(1pcs) |
| Power Consmption | 60W |
| Shipping Size (WxDxH)(mm) | 990x990x830 |
| Gross Weight | 120KG |
| Standard Accessory | Active Carbon Filter, Pre-filter, LED lamp |
| Optional Accessory | Base stand, Base Cabinet, HEPA filter, UV lamp, Water tap, Gas tap |

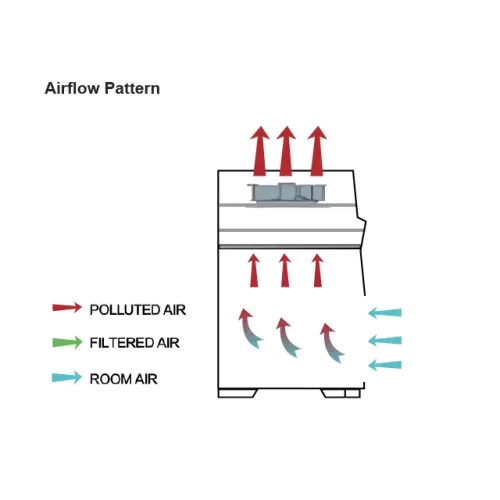

The primary purpose of a ductless fume hood is to remove contaminants present in the air of a laboratory or workspace. This includes substances like chemicals, gases, odors, corrosive, or flammable materials.
The simple control panel and compact dimensions make it suitable for a wide range of laboratory environments.

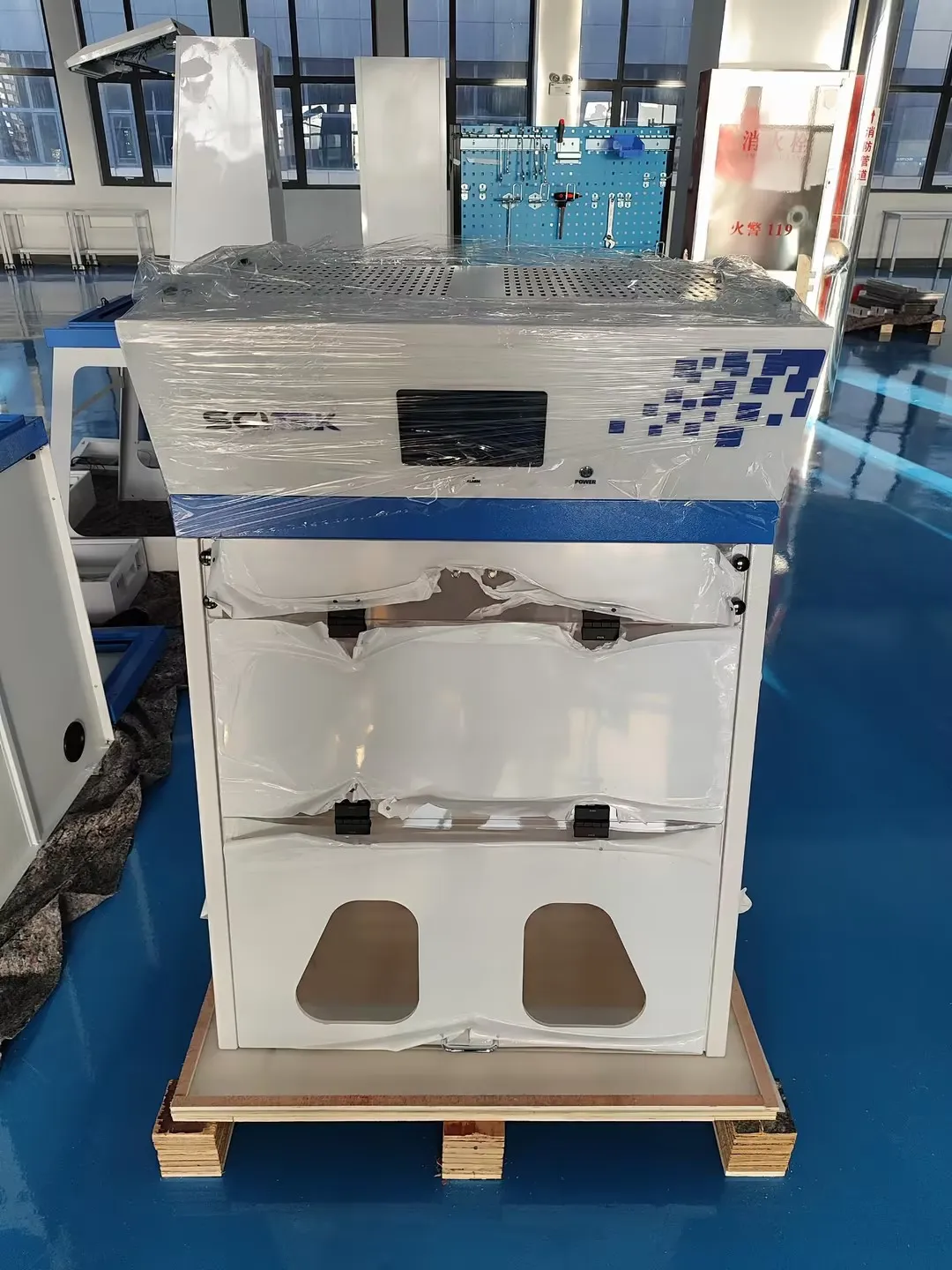

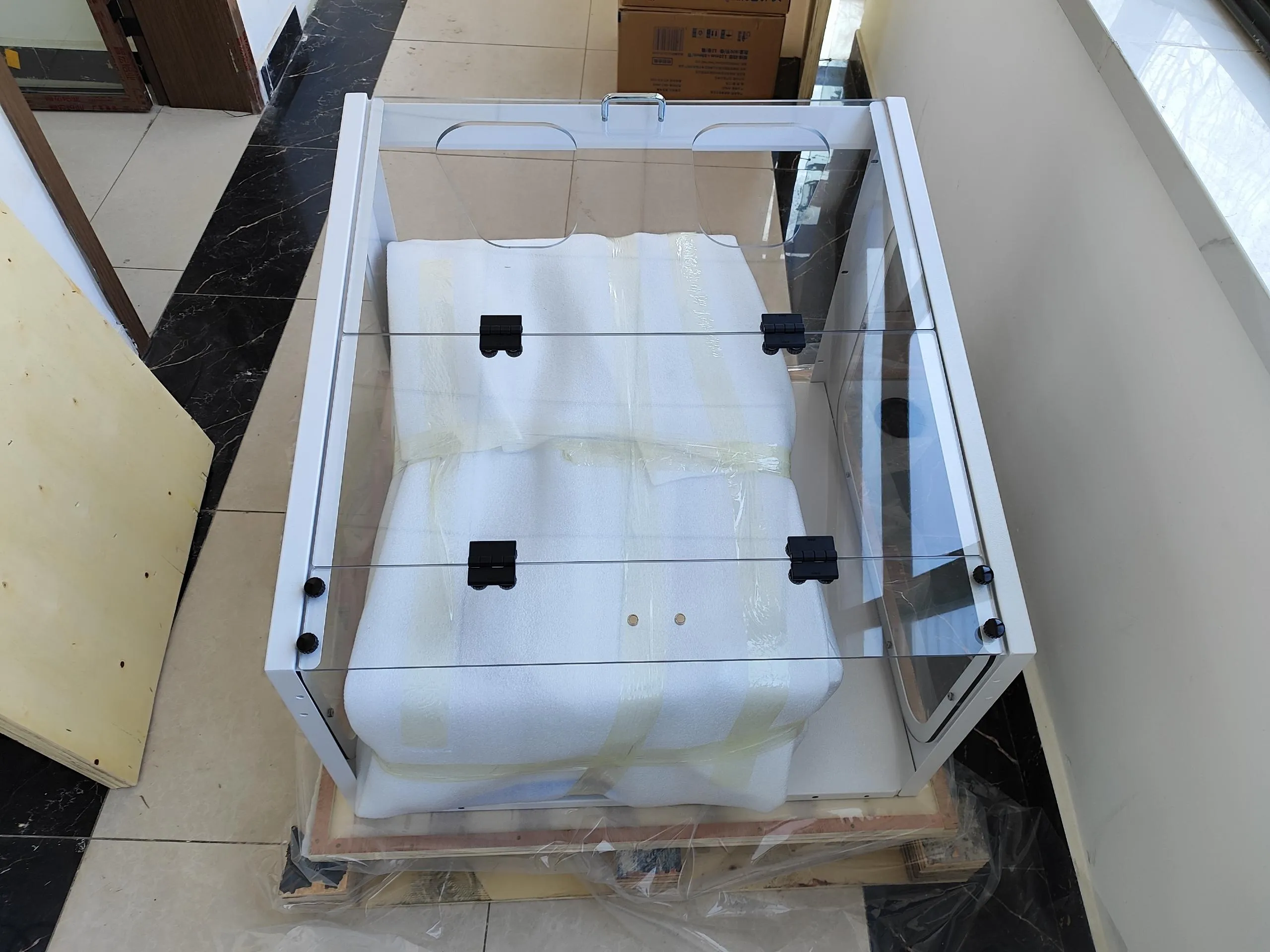

Scitek’s ductless fume hood is packed and shipped in a sturdy timber box with cardboard and foam padding to ensure safe delivery to its destination.

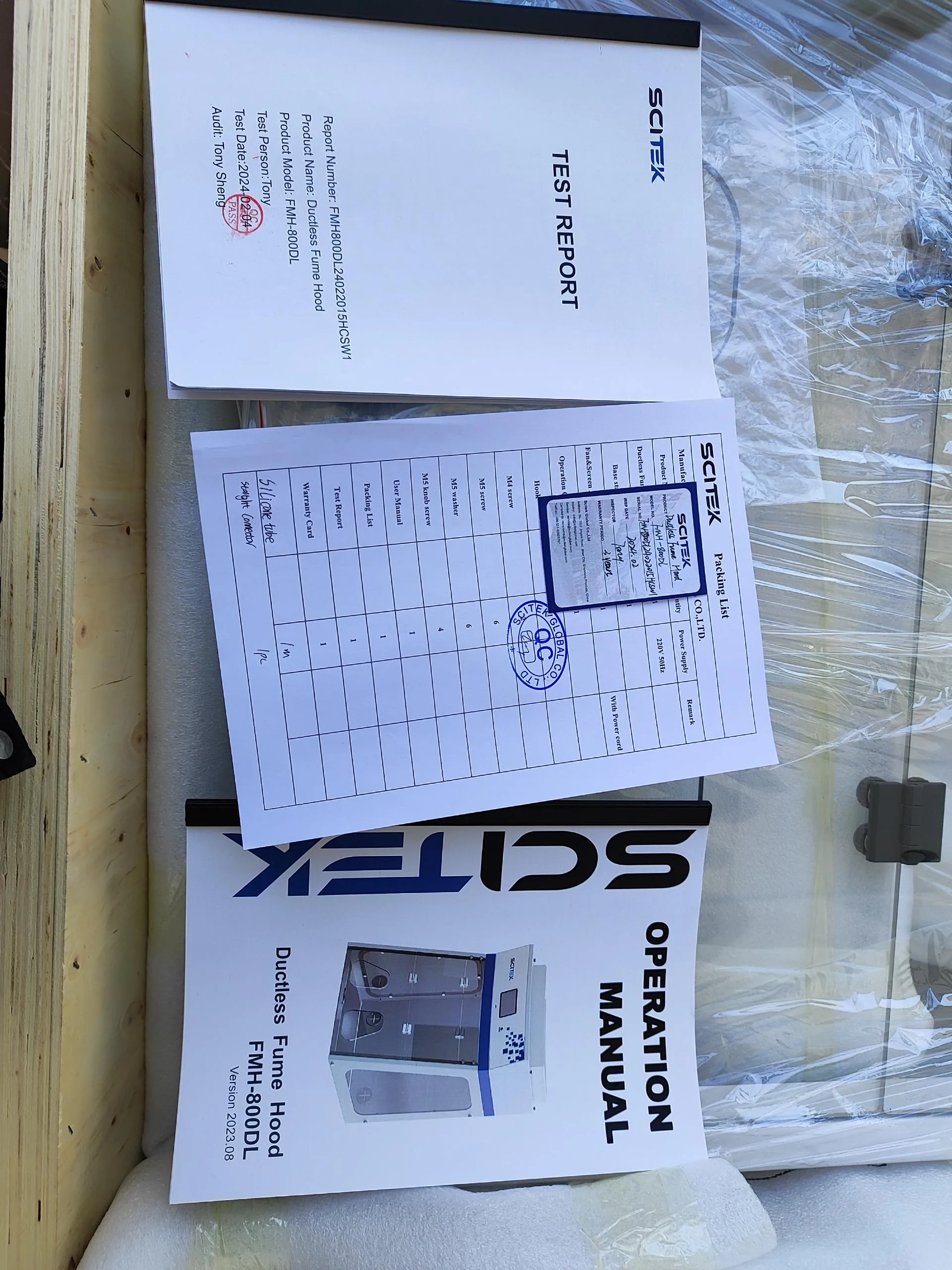

Operator’s manuals and tools
What is ductless fume hood?
A ductless fume hood is a type of laboratory ventilation system that captures and filters harmful fumes and particulates using filtration systems instead of venting them outside through ductwork.
Difference between ductless and ducted fume hoods?
Ducted fume hoods can be filtered or unfiltered depending on the design and application. Ductless fume hoods contain filters which clean contaminated air and recirculate it directly back into the laboratory. No additional ductwork is required to exhaust air to the outside.
Are ductless fume hoods safe?
Ductless fume hoods protect the individuals who use them and people working in the same area from fumes, vapors, and particles that can result in injuries and possibly even death. If the intake airflow is not within a specified range, hazardous materials may flow out of the fume hood and cause harm.
Are ductless fume hoods effective?
While ductless fume hoods offer cost-efficiency, ease of installation, and eliminate the need for ductwork, they may not be suitable for all scenarios compared to other types of chemical fume hoods.
