Functional and energy-efficient PP fume hoods provide an environmentally friendly solution for the laboratory environment and operators.
PP fume hood is suitable for the experiment of strong acid, strong alkali, strong corrosion and volatility. It can effectively protect the operator from inhaling toxic gases and protect the operator and sample safety. And dramatically reduces the risk of fire and explosion. The environment can also be protected by installing appropriate filters.

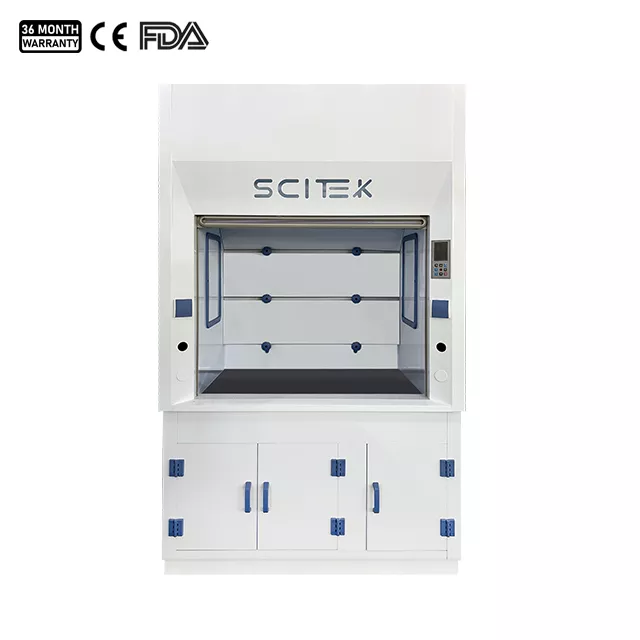

| Model | FMH-1000DP | FMH-1200DP | FMH-1500DP | FMH-1800DP | |
| External Size (WxDxH)(mm) | 1047x800x2450 | 1247x800x2450 | 1547x800x2450 | 1847x800x2450 | |
| Internal Size (WxDxH)(mm) | 787x560x700 | 987x560x700 | 1287x560x700 | 1587x560x700 | |
| Work Surface Height | 820mm | ||||
| Max Opening | 740mm | ||||
| Air Velocity | 0.3~0.8m/s | ||||
| Noise | ≤68dB | ||||
| Exhaust Duct | 4.3 meters, φ250mm | ||||
| LED Lamp | 12W x2 | 12W x2 | 22W x2 | 18W x2 | |
| Blower | Built-in PP centrifugal blower (2 blowers for FMH-1800DP only); Speed adjustable | ||||
| Front Window | Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable. | ||||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz (Optional) | ||||
| Consumption | 400W | 400W | 500W | 700W | |
| Material | Main Body | Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion. | |||
| Work Table | Chemical resistant phenolic resin | ||||
| Standard Accessory | LED light; | ||||
| Work table: Chemical resistant phenolic resin; | |||||
| Base cabinet; | |||||
| Waterproof socket x2; | |||||
| Water tap (PP); | |||||
| Gas tap (PP); | |||||
| Gas & Water remote control; | |||||
| Water Sink; | |||||
| PP centrifugal blower x1 (2 for FMH-1800DP only) | |||||
| 4.3 meters PVC duct (2 pcs of 4.3 meters PVC dust for FMH-1800DP only), Diameter: 250mm; | |||||
| Pipe strap x2 (4 pcs for FMH-1800DP only); | |||||
| Optional Accessory | PP work table, epoxy resin board, ceramic board or solid core physical and chemical board; | ||||
| Active carbon filter; | |||||
| Outer PP centrifugal blower x1 (only need to select when the duct more than 4.3m, 2pcs blower for FMH-1800DP only) | |||||
| Gross Weight | Main Body | 137kg | 155kg | 180kg | 206kg |
| Base Cabinet | 89kg | 99kg | 114kg | 140kg | |
| Package Size (WxDxH)(mm) | Main Body | 1188x938x1612 | 1388x938x1612 | 1688x938x1612 | 1988x938x1612 |
| Base Cabinet | 1188x888x1000 | 1388x888x1000 | 1688x888x1000 | 1988x888x1000 | |
| Shipping Volume (m3) | 2.9 | 3.4 | 4.1 | 4.8 | |

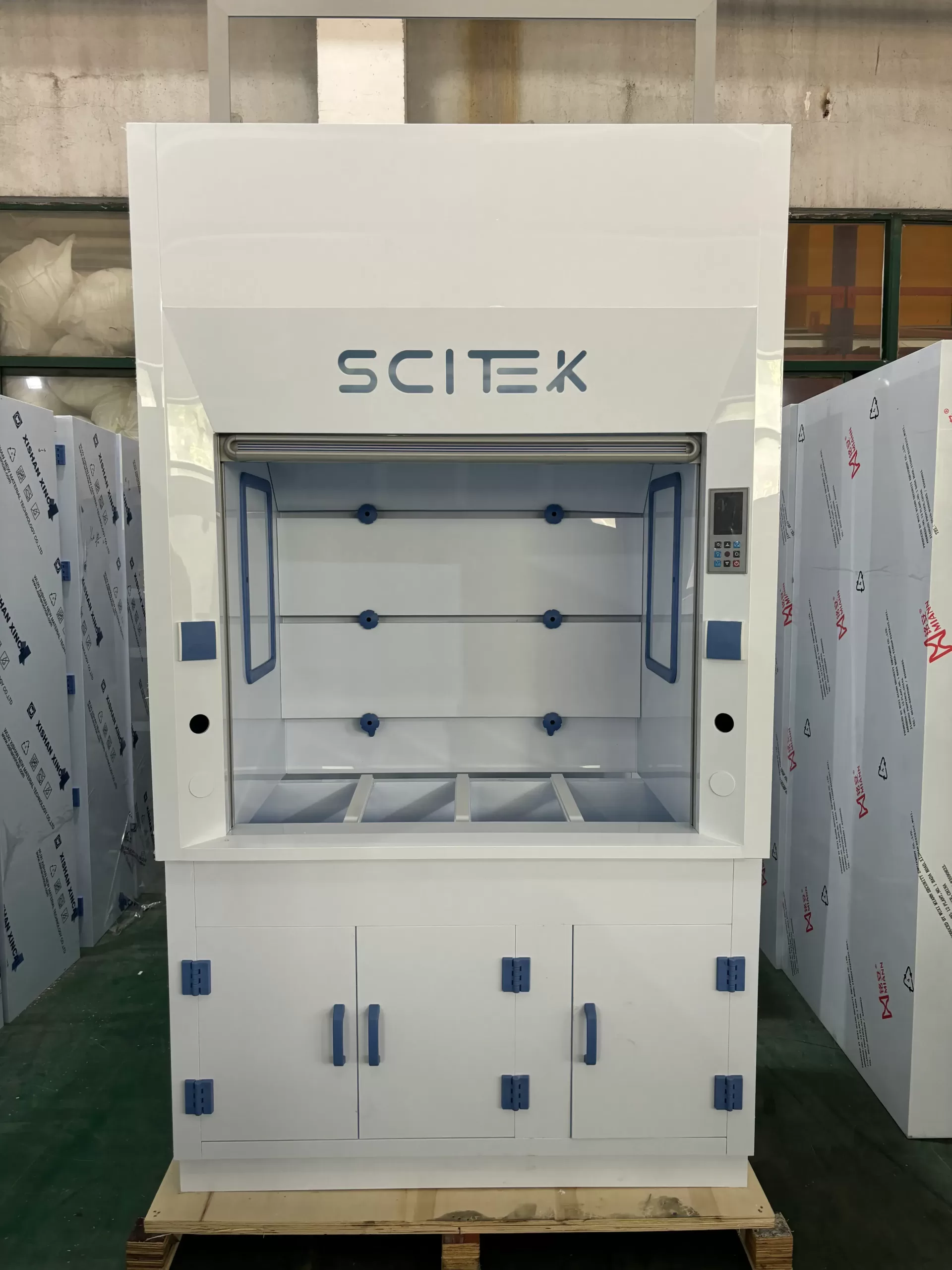

The body of the PP fume hood is made of Porcelain white PP to ensure resistance to strong acids, alkalis and corrosive properties. The overall design is simple and beautiful.

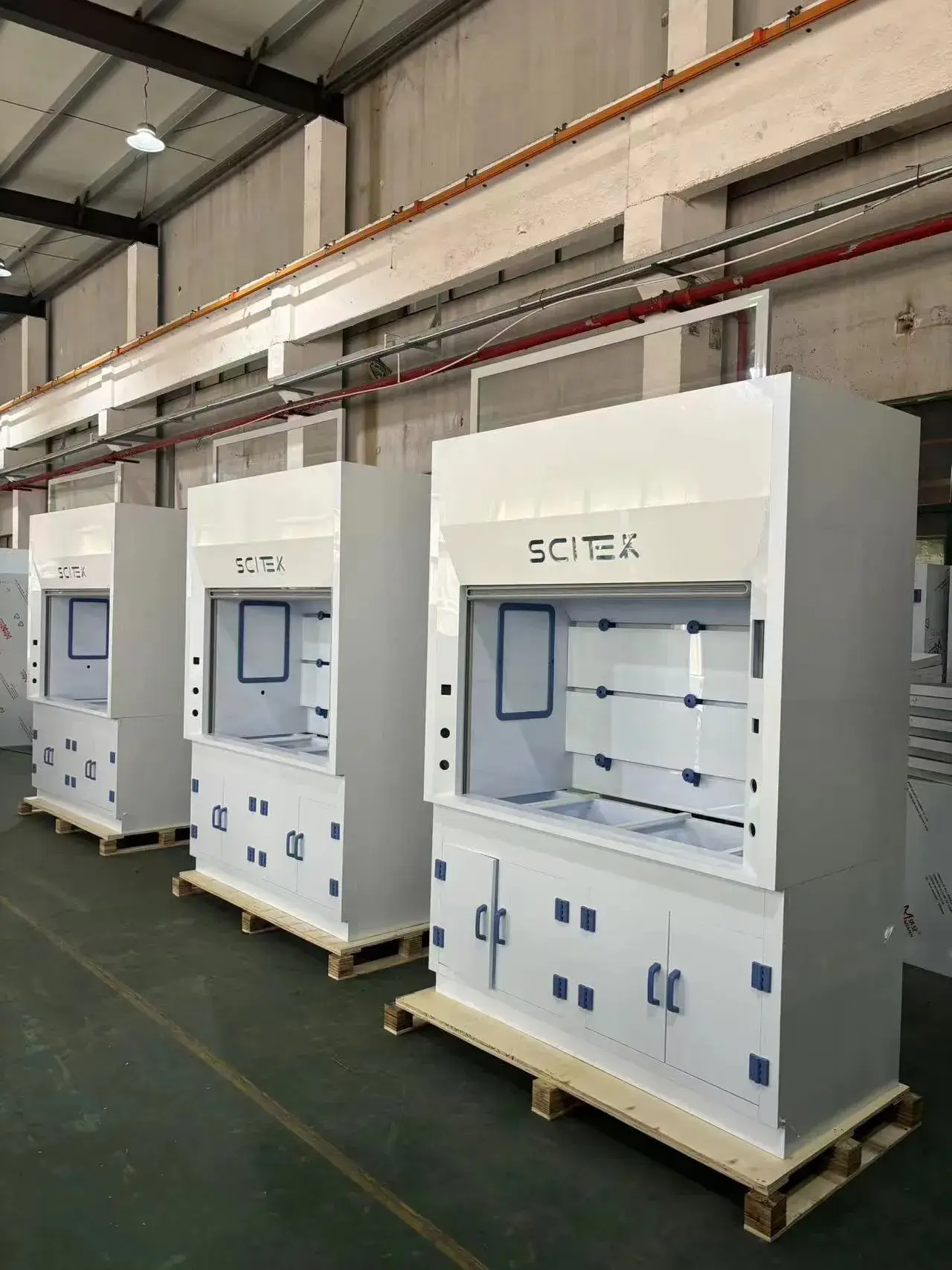

During transport, our PP fume hood is meticulously protected and securely installed to ensure its safety. It is surrounded by dense packing material to prevent any collision or vibration damage during transit.
We offer a variety of shipping options including sea freight, air freight, land freight, and express service. Additionally, we accept a wide range of trade terms including EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAF, DES, DEQ, DDU, and DDP to accommodate your specific shipping needs.
What is the best material for a fume hood?
Polypropylene. Polypropylene is undoubtedly the material of choice when constructing modern fume cupboards.
