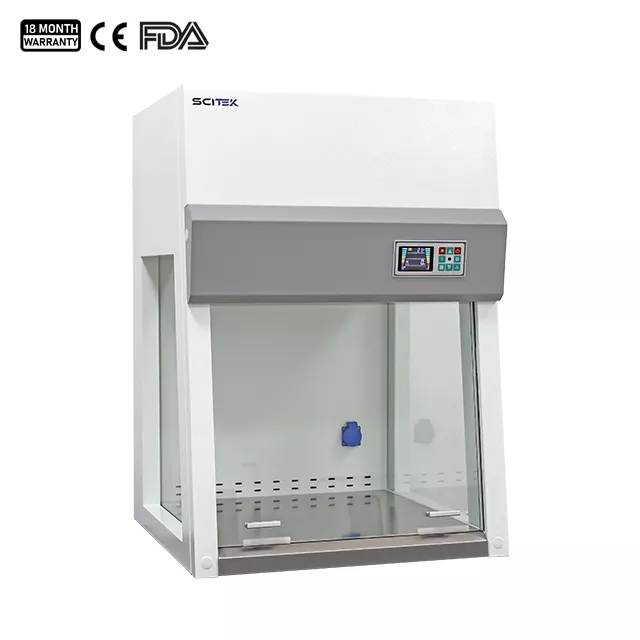

For applications that are not hazardous to operator but require clean work area, choose LCB-V800 vertical laminar flow cabinet.
Laminar flow cabinets provide controlled work surfaces for applications that require a sterile work environment, ensuring that contaminants are prevented from entering through continuous filtered airflow.
Scitek’s laminar flow cabinet is the perfect engineering and ergonomic design combination, designed to provide long-term reliability and user comfort. It is particularly suitable for non-hazardous applications such as plant tissue culture, media preparation, and other requirements for sterile environments.
| Model | LCB-V800 |
|---|---|
| Applicable Station | One person one side |
| Airflow Direction | Vertical |
| Cleanliness | Class 100 (ISO Class 5) |
| Collection Efficiency | 0.3um particle ≥ 99.995% |
| Pre-Filter | Polyester fiber, Washable |
| HEPA Filter | ≥99.995% efficiency at 0.3μm |
| Windows | Front and Side windows, 5mm toughened glass, anti-UV |
| Material | Main Body: Cold-rolled steel with anti-bacteria powder Work Table: 304 stainless steel |
| Caster | Universal caster with leveling feet |
| Colony Count | ≤0.5/vessel (Petri dish is φ90mm) |
| Wind Speed | Initial: 0.5 Final: 0.2 (m/s) |
| Wind Speed Range | 0.2-0.5 (m/s), speed adjustable |
| Noise Level | ≤62db |
| Vibration Semi-peak Value | ≤3um |
| Lumination(Lx) | ≥500LX |
| Work Surface | 50kg |
| Inner Chamber | SUS 304 stainless steel plate |
| Outer Shell | Cold rolling steel electrostatic spraying exterior |
| Operation Door | Tempered glass |
| HEPA Filter (mm) | 780x533x50 one piece |
| Pre- Filter (mm) | 532x446x5 one piece |
| LED Lamp | 8Wx1pcs |
| UV Lamp | 8Wx1pcs, emission of 253.7 nanometers, with UV timing function, Interlock with front windows. |
| Top Fan | 160W one piece |
| Rated Power | 180W |
| Display | Microprocessor controlled with LCD display, graphical and digital display of the operating status of each function |
| Wind Speed Control | Intelligent multi-level adjustable |
| Standard Accessory | UV lamp; LED lamp; Waterproof socketx1; |
| Internal Size (WxDxH)(mm) | 610x590x625 |
| External Size (WxLxH)(mm) | 710x680x1050mm (Without base stand) 710x680x1670mm (With base stand) |
| Packing Size (WxLxH)mm | 850x936x1218 |
| Max.Consumption | 149W |
| Waterproof Socket | 1pcs |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| NW/kg | 80kg (Without base stand), 130kg (With base stand) |
| GW/kg | 115kg (Without base stand), 165kg (With base stand) |
| Shipping Size (WxDxH) | 850x936x1218mm |
| Optional | Base stand |

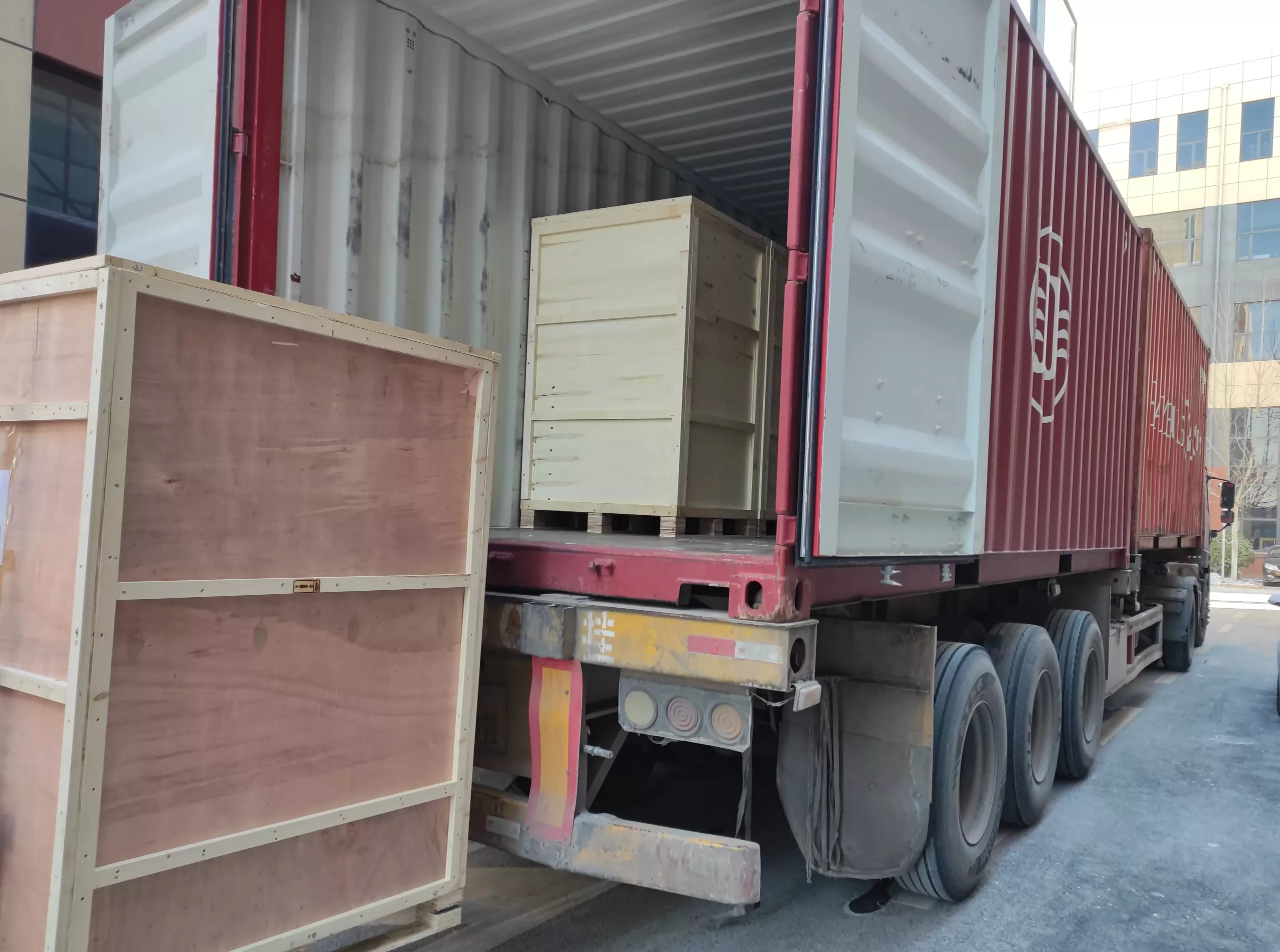

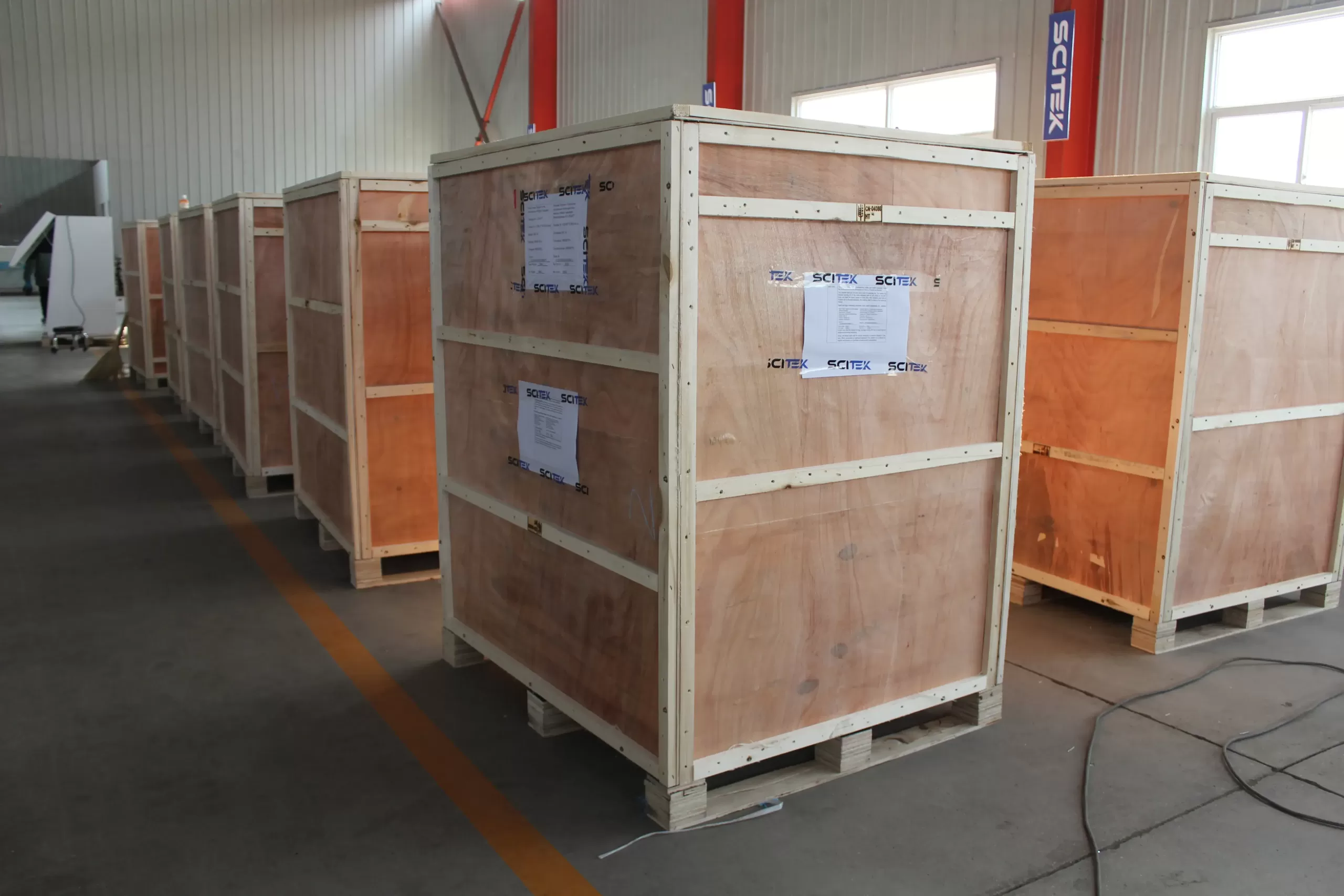

Adopting standard international export packaging, the packaging can adapt to long-term international transportation.
We provide sea freight, air freight, land freight, express service, accept EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAF, DES, DEQ, DDU, DDP and other trade terms.

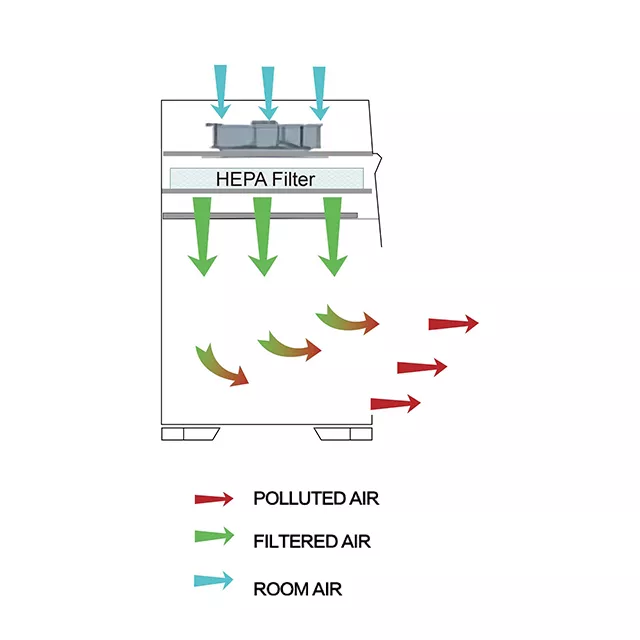

A vertical laminar flow cabinet works by drawing air through a HEPA filter, which removes contaminants, and then directing this clean air downward in a vertical laminar flow pattern onto the work surface, creating a sterile environment for tasks such as tissue culture, sample preparation, or pharmaceutical compounding.
